UNIDENTIFIED
VGA SMT1024 / VGA 1024
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
WD9DC00 |
|
Highest Resolution Supported |
1024 X 768 |
|
Data Bus Type |
16-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
512KB |
|

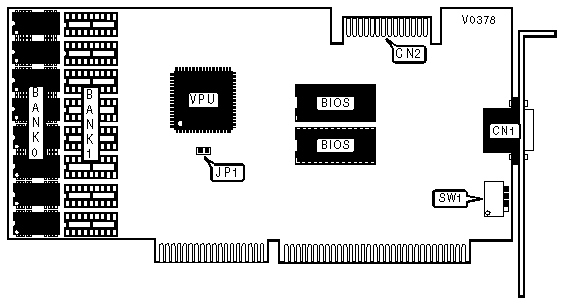

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
15-pin analog video port |
CN1 |
VESA Feature connector |
CN2 |
|
FACTORY CONFIGURED SETTINGS | |
|
Switch |
Setting |
|
SW1/3 |
Off |
|
MANUAL 16-BIT BIOS CONFIGURATION | ||
|
Setting |
JP1 | |
| » |
Initial setup and normal operation |
Closed |
|
Note:JP1 should remain in the closed position unless the 16TEST program has been run and it recommends removing the jumper. | ||
|
MONITOR TIMING SELECTION | ||
|
Timing |
SW1/1 | |
| » |
Standard PS/2 frequency |
Off |
|
Multi-frequency display |
On | |
|
MONITOR TYPE CONFIGURATION | ||
|
Type |
SW1/2 | |
| » |
PS/2 |
On |
|
PC/AT |
Off | |
|
BIOS WIDTH CONFIGURATION | ||
|
Width |
SW1/4 | |
| » |
Autodetect enabled |
On |
|
Force 8-bit |
Off | |
|
VIDEO MEMORY CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
256KB |
(8) 41256 |
NONE |
|
512KB |
(8) 41256 |
(8) 41256 |
