UNIDENTIFIED
PT-2027
|
Category |
Video |
|
Video Type |
VGA |
|
Video Processor |
Trident Microsystems, Inc. |
|
Highest Resolution Supported |
640 x 480 |
|
Data Bus Type |
16-bit ISA |
|
Memory Type |
Unidentified |
|
Maximum Onboard Memory |
Unidentified |
|

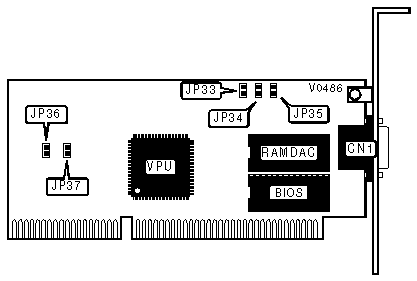

CONNECTIONS | |
|
Purpose |
Location |
|
15-pin analog video port |
CN1 |
|
FACTORY CONFIGURED SETTINGS | |
|
Jumper |
Setting |
|
JP36 |
Closed |
|
JP37 |
Open |
|
ZERO WAIT STATE | ||
|
First stage |
JP33 | |
| » |
Enabled |
Closed |
|
Disabled |
Open | |
|
AUTODETECT | ||
|
Setting |
JP34 | |
| » |
Enabled |
Open |
|
Disabled |
Closed | |
|
SCAN RATE SELECTION | ||
|
48.7KHz |
JP35 | |
| » |
Disabled |
Closed |
|
Enabled |
Open | |
