UNIDENTIFIED
TRIDENT 9000
|

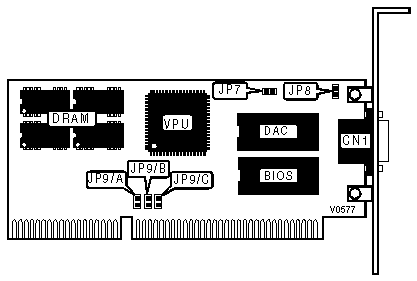

Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
TVGA9000 |
|
Highest Resolution Supported |
1024 x 768 |
|
Data Bus Type |
16-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
256KB or 512KB |
|
CONNECTIONS | |
|
Purpose |
Location |
|
15-pin analog video port |
CN1 |
|
SCAN RATE SETTING | ||
|
Setting |
JP7 | |
| » |
>=48.7KHz |
Open |
|
<48.7KHz |
Closed | |
|
Note: JP7 is functional for the 512KB memory configuration only. | ||
|
AUTODETECT BUS WIDTH | ||
|
Setting |
JP8 | |
| » |
Enabled |
Open |
|
Disabled |
Closed | |
|
BUS SELECT | ||||
|
Setting |
JP9/A |
JP9/B |
JP9/C | |
| » |
16-bit |
Open |
Open |
Open |
|
8-bit |
Closed |
Closed |
Closed | |
|
VIDEO MEMORY CONFIGURATION |
|
Note: The board comes in two configurations one with 256KB (4) 64K X 8 or with 512KB (4) 256K X 4 |
