Category	Video
Video Types Supported	Monochrome
Video Processor	Unidentified
Highest Resolution Supported	720 X 348
Data Bus Type	8-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	64KB

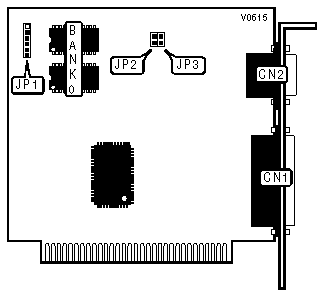

CONNECTIONS
Purpose	Location	Purpose	Location
Parallel port	CN1	Light pen connector	JP1
15-pin analog video port	CN2

PARALLEL PORT ADDRESS
Address	JP2	JP3
278h	Closed	Closed
378h	Open	Closed
3BCh	Open	Open
Disabled	Closed	Open
