Category	Video
Video Types Supported	MDA
Video Processor	Unidentified
Highest Resolution Supported	720 x 348
Data Bus Type	8-bit ISA
Memory Type	Unidentified
Maximum Onboard Memory	Unidentified

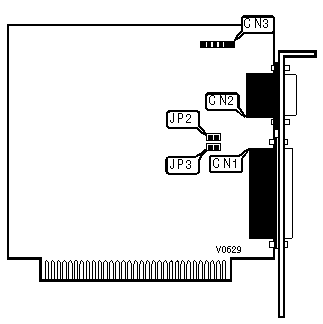

CONNECTIONS
Purpose	Location	Purpose	Location
Parallel port	CN1	6-pin light pen port	CN3
15-pin Video port	CN2

USER CONFIGURABLE SETTINGS
Purpose	Jumper	Setting
Printer port disable	JP3	Closed
Printer port enable	JP3	Open
Character Generator 2764	JP4	Closed
Character Generator 23C01	JP4	Open
