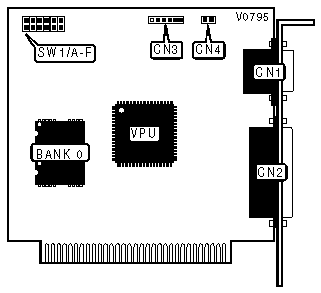

UNIDENTIFIED
A101
|
Category |
Video |
|
Video Types Supported |
CGA |
|
Video Processor |
Unidentified |
|
Highest Resolution Supported |
720 x 350 (Monochrome) |
|
Data Bus Type |
8-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
64KB |
|
CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
15-pin analog video port |
CN1 |
Light pen connector |
CN3 |
|
25-pin parallel port |
CN2 |
Composite video connector |
CN4 |
|
COLOR/MONOCHROME SELECT |
||
|
Setting |
SW1/jumper A |
|
|
» |
Color |
Open |
|
|
Monochrome |
Closed |
|
CGA EMULATION |
||
|
Setting |
SW1/jumper B |
|
|
» |
Enabled |
Closed |
|
|
Disabled |
Open |
|
AUTOSWITCH FUNCTION |
||
|
Setting |
SW1/jumper C |
|
|
» |
Enabled |
Closed |
|
Disabled |
Open |
|
|
PARALLEL PORT CONFIGURATION |
|||
|
LPT/Address |
SW1/jumper D |
SW1/jumper E |
|
|
» |
LPT1/3BCh |
Closed |
Open |
|
|
LPT2/378h |
Open |
Closed |
|
|
LPT3/278h |
Closed |
Closed |
|
|
Disabled |
Open |
Open |
|
COMPOSITE MONITOR TYPE |
||
|
Setting |
SW1/jumper F |
|
|
» |
Color |
Closed |
|
Monochrome |
Open |
|
