Category	Video
Video Types Supported	EGA
Video Processor	Unidentified
Highest Resolution Supported	720 x 350 (monochrome)
Data Bus Type	8-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	256KB

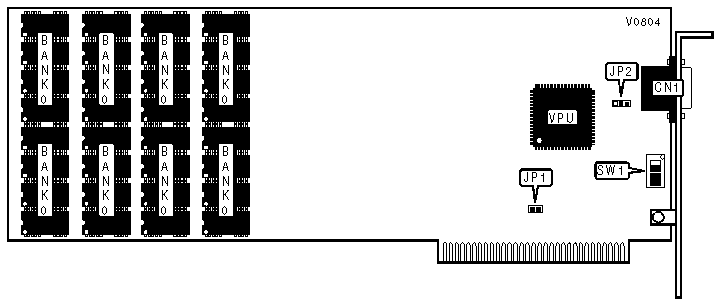

CONNECTIONS
Purpose	Location
9-pin digital video port	CN1

I/O ADDRESS
» Address		JP1
»	3XXh	Closed
»	2XXh	Open

MONITOR TYPE
» Setting		JP2
»	EGA monitor	Pins 2 & 3 closed
»	Non-EGA monitor	Pins 1 & 2 closed

DISPLAY SETTINGS
» Setting		SW1/1	SW1/2	SW1/3	SW1/4
»	EGA (640 x 350)	Off	On	On	Off
»	CGA (320 x 200)	Off	On	On	On
»	Monochrome/(80 x 25 color secondary)	Off	On	Off	Off
»	Monochrome/(40 x 25 color secondary)	Off	On	Off	On
»	Color (80 x 25)	On	Off	Off	Off
»	Color (40 x 25)	On	Off	Off	On
