Category

Video

Video Types Supported

XVGA

Video Processor

Tseng Laboratories

Highest Resolution Supported

1280 x 1024

Data Bus Type

16-bit ISA

Memory Type

DRAM

Maximum Onboard Memory

1MB

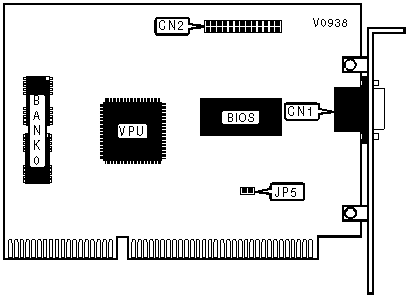

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

CN1

VGA feature connector

CN2

WAIT STATE SELECTION

Setting

JP5

»

Enabled

Closed

Disabled

Open

DRAM CONFIGURATION

Size

Bank 0

1MB

(2) 1024 x 4
