WILLOW PERIPHERALS
PUBLISHER'S COLOR
|
Category |
Video capture card |
|
Video Types Supported |
VGA |
|
Video Processor |
Willow Peripherals |
|
Highest Resolution Supported |
640 x 480 |
|
Data Bus Type |
16-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
1MB (Exact location of memory is unidentified) |
|

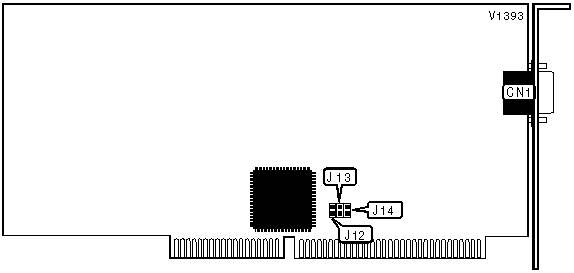

CONNECTIONS |
|
|
Purpose |
Location |
|
15-pin analog video port |
CN1 |
|
BASE I/O ADDRESS SELECTION |
||||
|
Address |
J12 |
J13 |
J14 |
|
|
» |
300h |
Closed |
Closed |
Closed |
|
|
310h |
Open |
Closed |
Closed |
|
|
320h |
Closed |
Open |
Closed |
|
|
330h |
Open |
Open |
Closed |
|
|
340h |
Closed |
Closed |
Open |
|
|
350h |
Open |
Closed |
Open |
|
|
360h |
Closed |
Open |
Open |
|
|
370h |
Open |
Open |
Open |
Note: Address 310h is not used with the VGA-TV or VGA-TV GE/O when used in conjunction with the Publisher's Color. |
||||
